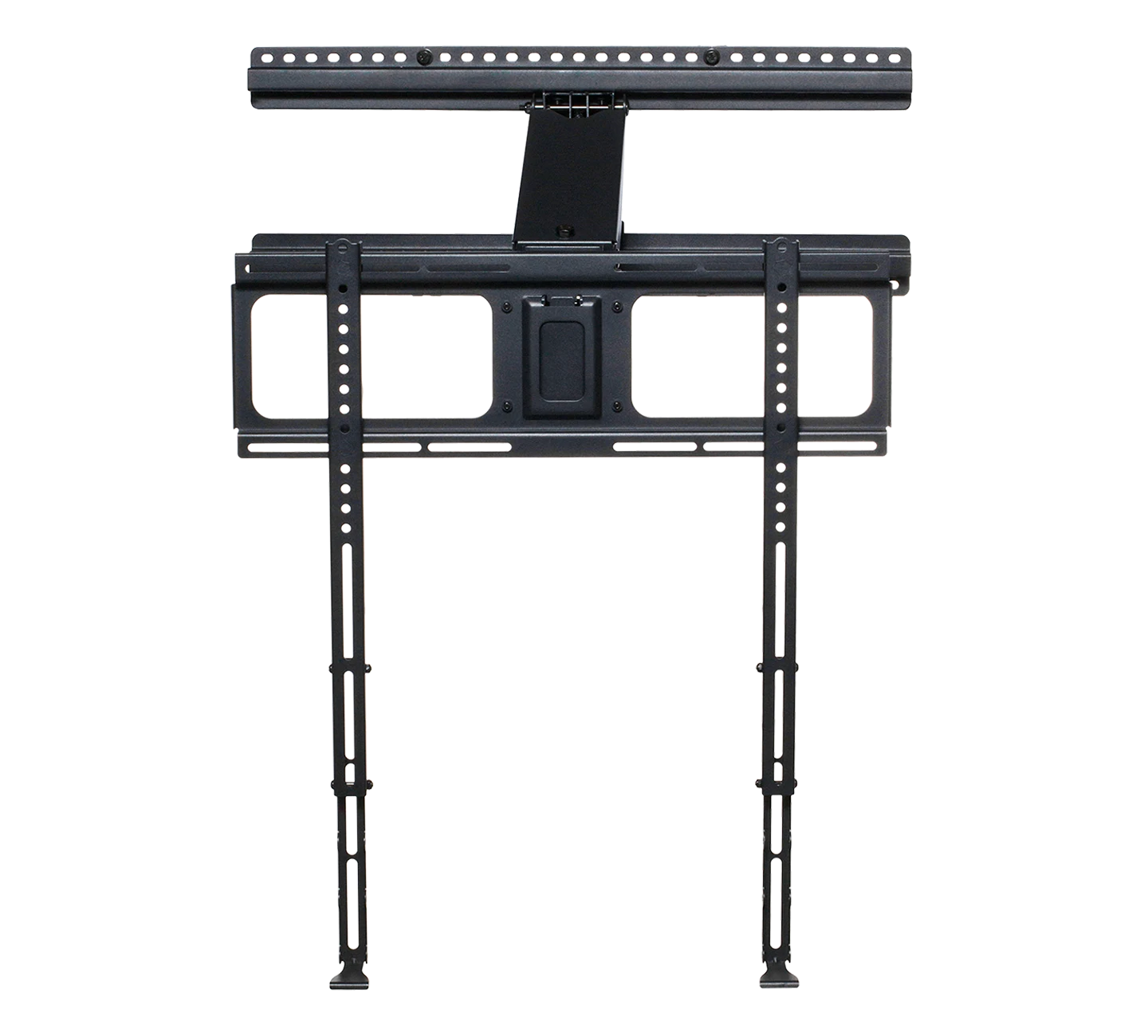

MantelMount MM340 · MM340 Standard Pull Down TV Mount

Model MM340

The MM340 Standard Mount is perfect for those wanting their entry-level Pull Down TV Mount to place a heavier emphasis on safe, easy and dependable functionality, yet still be made with the incomparable standards in engineering, craftsmanship and features that only come with a MantelMount®. Features:• Enhanced Easy-Pull Down• Pull Down Handles• Cable Management• Adjustable Stops• Auto-Straightening• UL Tested and Listed for Safety• RB100 1.8" Flush-To-Wall Recess Box accessory available (to recess the MM340 requires purchasing both the RB100 Recess Box and SSB40 Adapter to have the necessary bolt pattern configuration.)NOTE: Wall Plate Covers and a Sound Bar Adapter are available as add-on accessories!Compare the MM340 features and specs with other MantelMounts

Current catalog price

$189.95

Verified 10/27/2026 · Price validity through 11/4/2026

Mount purchase requires service.

TV mount sales must be paired with a TV or paid TV installation in TVS’s standard local service area. We do not deliver TV mounts on their own.

MantelMount installation adds $79

Choose a verified fitting MantelMount in the guided TV purchase. Installation adds $79 per TV to the normal TV-size installation and applicable wall-surface charge; hardware is separate. TV fit, mounting surface, fireplace heat and clearance requirements must still be met. Structural work is not included.

Choose a TV and configure installation

Hardware alone does not include installation. Use the guided TV purchase for verified fit and itemized installation, including the additional $79 labor per MantelMount.

Specifications

Mount style: Pull down
Supported TV size: 44–80″
Maximum TV weight: 90 lb
VESA patterns: Not specified by manufacturer
Manufacturer detail: MM340 Specs:
Manufacturer detail: Maximum Clearance: 18" Deep Mantel
Manufacturer detail: Reaches Studs Up to 24" Apart
Manufacturer detail: 27 inches of vertical drop
Manufacturer detail: 30 degrees swivel left or right
Manufacturer detail: 5.5" flush-to-wall
Manufacturer detail: Weight capacity: 20-90 lbs
Manufacturer detail: TV size: 44"-80”
Manufacturer detail: VESA: 200 x 200 (min), 600 x 600 (max)
Manufacturer detail: MM340 Dimensions Diagram
Manufacturer detail: MM340 Dimensions Diagram w/RB100 Recess Box

Included parts

For included-parts information, consult the manufacturer's exact-model documents in the Documents section below.

Restrictions and fit notes

Read the exact-model manual for TV weight, VESA, mantel clearance and wall restrictions.
Manufacturer TV weight range: 20–90 lb. Minimum TV weight applies.
Guided TV mounting adds a $79 MantelMount installation surcharge to the normal size and surface charges. Hardware is separate. Verify exact TV fit, wall structure, mantel clearance and heat restrictions; no appointment or structural work is included.

Manufacturer documents

Connect hardware to installation.

Choose customer-owned mount installation alongside your TV in the shared cart. MantelMount installation is reviewed as a custom estimate, while its hardware may be purchased with a TV.

Review shared cart

Specifications are manufacturer information, not a fit guarantee. TVS evaluates the exact TV and installation conditions before confirming a purchase or install.
